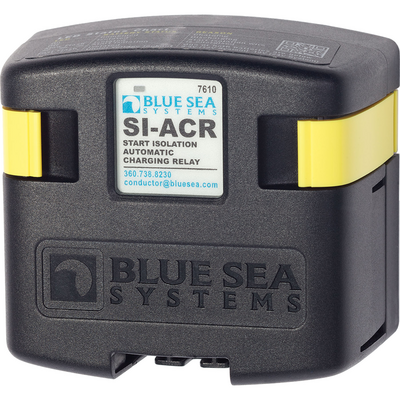

Blue Sea Automatic Charging Relay 7610 ttery Switch Dual Circuit Plus?
BLUE SEA SYSTEMS BSS-7610
Allows temporary isolation of house loads from engine circuits during engine cranking to protect sensitive electronics Automatically combines battery banks during the charging cycle and isolates under discharge 12/24 Volt auto ranging voltage input Waterproof · Ignition protected. Remote LED indicates various functions Supports high-output alternators up to 120 Amperes Activates from any charging source
Read More “Blue Sea Automatic Charging Relay 7610 ttery Switch Dual Circuit Plus?”
Description
- Allows temporary isolation of house loads from engine circuits during engine cranking to protect sensitive electronics
- Automatically combines battery banks during the charging cycle and isolates under discharge
- 12/24 Volt auto ranging voltage input
- Waterproof · Ignition protected.
- Remote LED indicates various functions
- Supports high-output alternators up to 120 Amperes
- Activates from any charging source – alternators, battery chargers, or solar panels
Continuous Rating: 120 Amperes DC
Intermittent Rating: 210 Amperes DC
Terminal Stud Size 3/8″-16 (accepts M10 ring terminal)
Maximum Cable Size 1/0 AWG
Agency Standards: ISO 8846 / Meets SAE J1171 external ignition protection requirements Width: 3.886″; Height: 3.502″
Additional information
| Weight | 1.2600 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 in |
