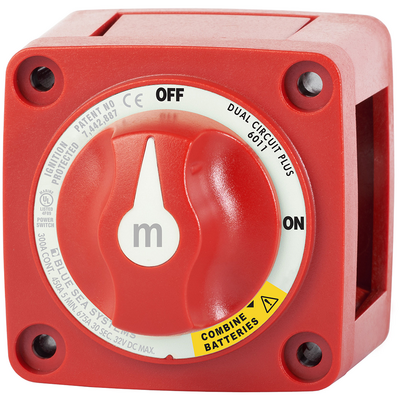

Blue Sea Dual Circt Battery Switch 6011
BLUE SEA SYSTEMS BSS-6011
Simultaneously switches two isolated battery banks or combines battery banks to all loads Make before break contact design allows switching between battery banks without power interruption. 3 switch positions No alternator field disconnect Maximum voltage: 32 VDC 300 A continuous rating 450 A (5 min) intermittent rating Cranking rating (10 sec.) 1000A Cranking rating (1
Read More “Blue Sea Dual Circt Battery Switch 6011”
Description
Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruption.
- 3 switch positions
- No alternator field disconnect
- Maximum voltage: 32 VDC
- 300 A continuous rating
- 450 A (5 min) intermittent rating
- Cranking rating (10 sec.) 1000A
- Cranking rating (1 min.) 650A
- Battery inputs: 2
- Cable size to meet ratings: 4/0 AWG
Additional information
| Weight | 0.8000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 in |
Brand
BLUE SEA SYSTEMS
