Description

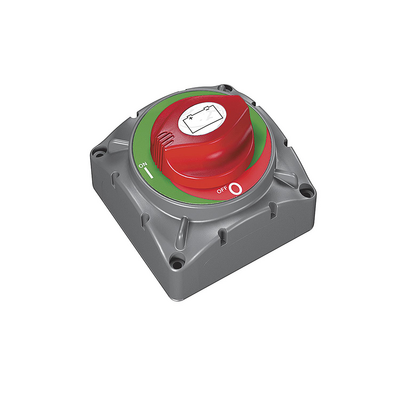

It fits into the same contour lock system as used on the battery distribution system.
Rated at 600 amps continuous and 2500 amps cranking. It is well suited to larger vessels.
Can be recessed or surface mounted.
Self cleaning sliding contact.
Continuous Rating: 600 Amps DC
Intermittent Rating: 800 Amps DC
Cranking Rating: 2500 Amps DC
Voltage Rating: 48 Volts DC
Operation: On / Off
Mounting: Recessed or Surface
Termination Stud Size: 2 x 12 mm (1/2 inch)
Dimensions: 102 x 102 x 90h mm (4 x 4 x 3.5h inches)
Tin plated copper studs and nuts
Ignition protected
Termination Stud Size: 2 x 12 mm (1/2 inch)
