Description

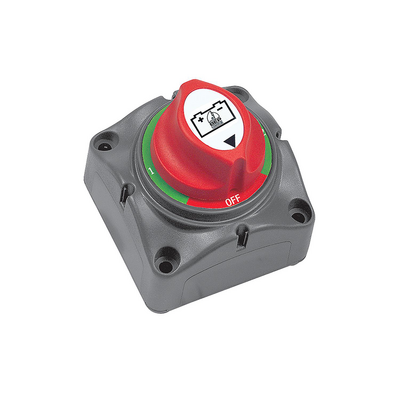

Patented contour lock system, allowing it to be a stand alone unit, or locked together with other switches. Also features a control knob which cannot be removed while in the ON or OFF position, however, it can be removed by switching to a counterclockwise 45° position.
The control knob also features an interchangeable labelling system allowing a full range of applications.
Removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits. This ensures the switch meets ABYC requirements. The 701 can be either surface or recess mounted.
Continuous Rating: 275 Amps DC
Intermittent Rating: 455 Amps DC
Cranking Rating: 1250 Amps DC
Voltage Rating: 48 Volts DC
Operation: On/Off
Mounting: Recessed or Surface
Ignition protected
Termination Stud Size:
2 x 10 mm (3/8 inch)
Dimensions: 2.75″ x 2.75″ x 3″ H
Tin plated copper studs and nuts
