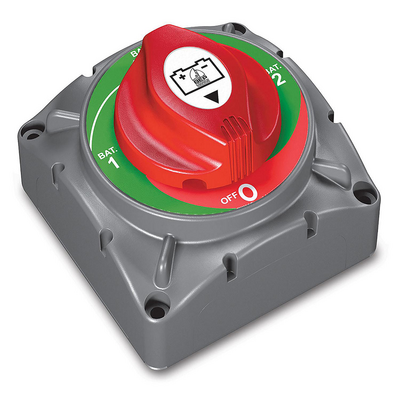

BEP Marine H/D Battery Selector Swtc 721

Description

Housed in the same module as the 720 It includes the same removable plates and back cover.

While BEP Marine recommends isolated battery systems as outlined with our distribution clusters, the 721 offers a simple economical way of separating two batteries.

Please note selector switches will not separate electronics from harmful engine starting spikes.

Continuous Rating: 350Amps DC between common B1 or B2

Continuous Rating: 500 Amps DC between common B1 + B2

Intermittent Rating: 500 Amps DC

Cranking Rating: 1500 Amps DC

Voltage Rating: 48 Volts DC

Operation: Selector-Battery 1-2-Both-off

Mounting: Recessed or surface

Termination Stud Size: 3 x 10mm(3/8″)

Tin plated copper studs and nuts

Dimensions: 102 x 102 x 90H (4 x 4 x3.5H”)

Ignition protected
