Description

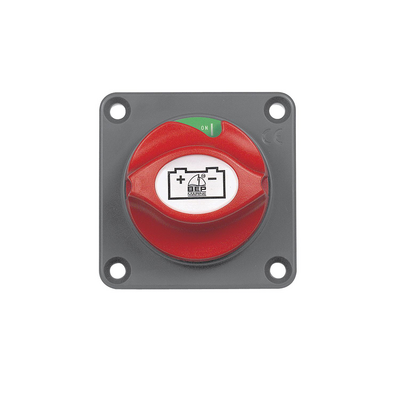

Designed specifically for panel mount applications. This range gives a very compact, versatile solution with the following features:
- Fits standard BEP battery switch label range.
- Removable key.
- Standard 2 1/16″ hole cut out (Same as standard gauge hole).
- Ignition Protected.
- Full access for cables with no restrictions.
- Fit into Contour Connect Panel.
Continuous Rating: 275 Amps DC
Intermittent Rating: 455 Amps DC
Cranking Rating: 1250 Amps DC
Voltage Rating: 48 Volts DC
Operation: On/Off
Mounting: Recessed or Surface
Ignition protected
Termination Stud Size:
2 x 10 mm (3/8 inch)
Dimensions: 69 x 69 x 75h mm
(2.75 x 2.75 x 3″ inches)
Tin plated copper studs and nuts
