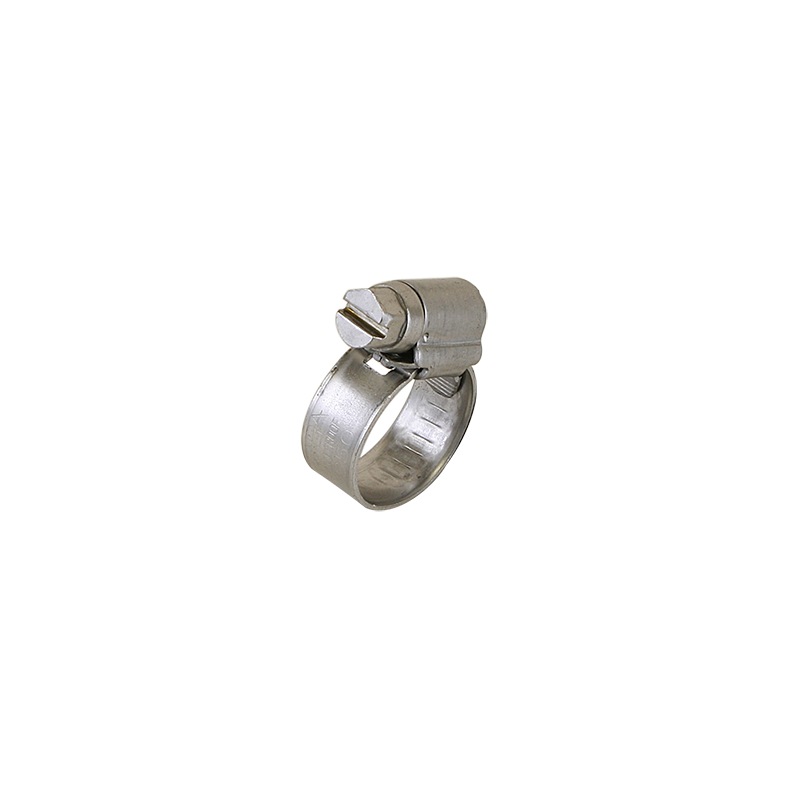

Scandvik SAE 4 SS Hose Clamp 13017
SCANDVIK SCA-13017
Rolled edges eliminate danger of damage to hose. Joining of band to housing allows the least possible deviation from circular. Extra wide threads are stamped. Band and screw threads are properly pitched rendering the clamp virtually immune to vibration back-off. Mfg. No. SAE Min. Max. GEM/SX5 Metric 8 mm 12 mm AWAB316017 3 3/8″ 9/16″
Read More “Scandvik SAE 4 SS Hose Clamp 13017”
Description
- Rolled edges eliminate danger of damage to hose.
- Joining of band to housing allows the least possible deviation from circular.
- Extra wide threads are stamped.
- Band and screw threads are properly pitched rendering the clamp virtually immune to vibration back-off.
| Mfg. No. | SAE | Min. | Max. |
| GEM/SX5 | Metric | 8 mm | 12 mm |
| AWAB316017 | 3 | 3/8″ | 9/16″ |
| AWAB316017 | 4 | 7/16″ | 11/16″ |
| AWAB316020 | 6 | 1/2″ | 13/16″ |
| AWAB316024 | 8 | 5/8″ | 15/16″ |
| AWAB316032 | 12 | 7/8″ | 1-1/4″ |
| AWAB316038 | 16 | 1-1/16″ | 1-1/2″ |
| AWAB316044 | 20 | 1-1/4″ | 2″ |
| AWAB316050 | 24 | 1-1/2″ | 2-1/4″ |
| AWAB316057 | 28 | 1-1/4″ | 2-1/4″ |
| AWAB316057 | 32 | 1-1/2″ | 2-1/2″ |
| AWAB316064 | 36 | 1-3/4″ | 2-3/4″ |
| AWAB316070 | 40 | 2″ | 3″ |
| AWAB316076 | 48 | 2-1/2″ | 3-1/2″ |
| AWAB316095 | 52 | 2-3/4″ | 3-3/4″ |
| AWAB316114 | 64 | 3-1/2″ | 4-1/2″ |
| AWAB316140 | 80 | 4″ | 5-1/2″ |
| AWAB316165 | 96 | 5“ | 5-1/2″ |
| AWAB316178 | 104 | 5-1/2″ | 7″ |
| AWAB316203 | 120 | 6-1/2″ | 8″ |
| AWAB316232 | 138 | 7-5/8″ | 9-1/8″ |
| AWAB316257 | 154 | 8-5/8″ | 10-1/8″ |
| AWAB316283 | 170 | 9-5/8″ | 11-1/8″ |
| AWAB316308 | 186 | 10-5/8″ | 12-1/8″ |
| AWAB316330 | 200 | 11-1/2″ | 13″ |
| AWAB316381 | 232 | 13-1/2″ | 15″ |
Additional information
| Weight | 0.0200 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 in |
Brand
SCANDVIK
