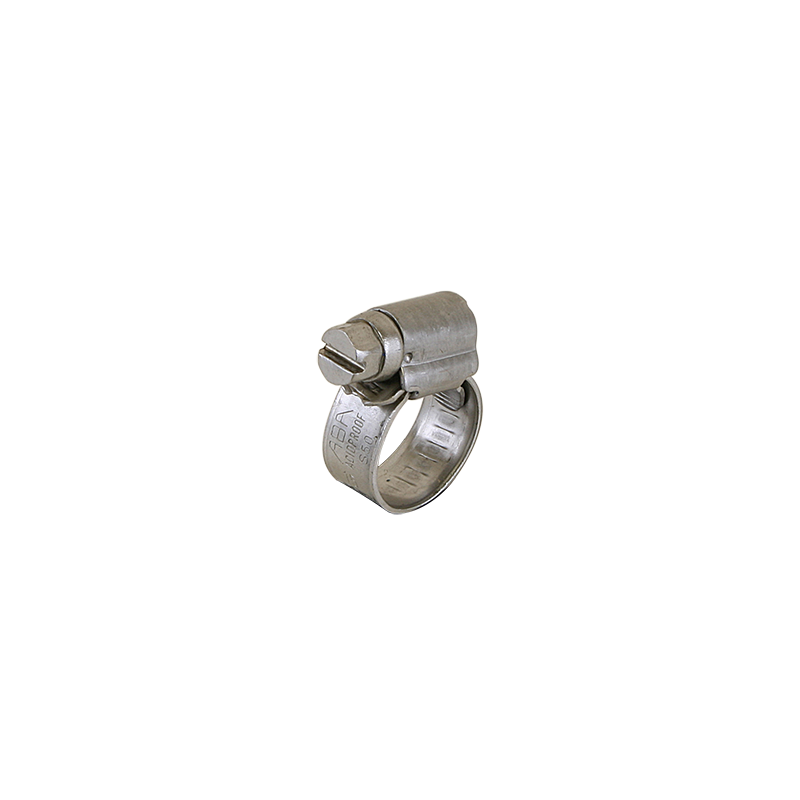

Scandvik SAE 3 SS Hose Clamp 13014
SCANDVIK SCA-13014
Rolled edges eliminate danger of damage to hose. Joining of band to housing allows the least possible deviation from circular. Extra wide threads are stamped. Band and screw threads are properly pitched rendering the clamp virtually immune to vibration back-off. Mfg. No. SAE Min. Max. 13014 0 5/16″ 1/2″ 13017 3 7/16″ 11/16″ AWAB316017 4
Read More “Scandvik SAE 3 SS Hose Clamp 13014”
Description
- Rolled edges eliminate danger of damage to hose.
- Joining of band to housing allows the least possible deviation from circular.
- Extra wide threads are stamped.
- Band and screw threads are properly pitched rendering the clamp virtually immune to vibration back-off.
| Mfg. No. | SAE | Min. | Max. |
| 13014 | 0 | 5/16″ | 1/2″ |
| 13017 | 3 | 7/16″ | 11/16″ |
| AWAB316017 | 4 | 7/16″ | 11/16″ |
| AWAB316020 | 6 | 1/2″ | 13/16″ |
| AWAB316024 | 8 | 5/8″ | 15/16″ |
| AWAB316032 | 12 | 7/8″ | 1-1/4″ |
| AWAB316038 | 16 | 1-1/16″ | 1-1/2″ |
| AWAB316044 | 20 | 1-1/4″ | 2″ |
| AWAB316050 | 24 | 1-1/2″ | 2-1/4″ |
| AWAB316057 | 28 | 1-1/4″ | 2-1/4″ |
| AWAB316057 | 32 | 1-1/2″ | 2-1/2″ |
| AWAB316064 | 36 | 1-3/4″ | 2-3/4″ |
| AWAB316070 | 40 | 2″ | 3″ |
| AWAB316076 | 48 | 2-1/2″ | 3-1/2″ |
| AWAB316095 | 52 | 2-3/4″ | 3-3/4″ |
| AWAB316114 | 64 | 3-1/2″ | 4-1/2″ |
| AWAB316140 | 80 | 4″ | 5-1/2″ |
| AWAB316165 | 96 | 5“ | 5-1/2″ |
| AWAB316178 | 104 | 5-1/2″ | 7″ |
| AWAB316203 | 120 | 6-1/2″ | 8″ |
| AWAB316232 | 138 | 7-5/8″ | 9-1/8″ |
| AWAB316257 | 154 | 8-5/8″ | 10-1/8″ |
| AWAB316283 | 170 | 9-5/8″ | 11-1/8″ |
| AWAB316308 | 186 | 10-5/8″ | 12-1/8″ |
| AWAB316330 | 200 | 11-1/2″ | 13″ |
| AWAB316381 | 232 | 13-1/2″ | 15″ |
Additional information
| Weight | 0.0300 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 in |
