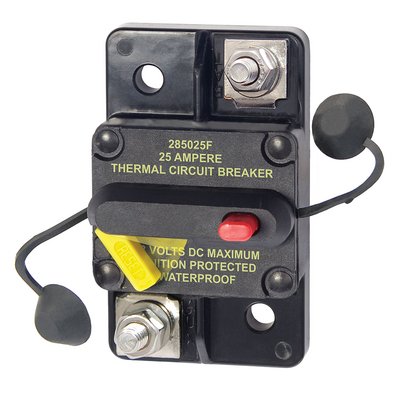

Blue Sea 25A 285 Circuit Breaker 7180
BLUE SEA SYSTEMS BSS-7180
Drop in replacement for 185-Series Circuit Breakers. Visible reset lever shows open condition. Ignition protected – Safe for installation aboard gasoline powered boats. Meets SAE J1171 external ignition protection requirements. Weather Resistant. Combines switching and circuit breaker function into one unit*. ‘Trip Free” – cannot be held closed after trip. * Do not use for
Read More “Blue Sea 25A 285 Circuit Breaker 7180”
Description
- Drop in replacement for 185-Series Circuit Breakers.
- Visible reset lever shows open condition.
- Ignition protected – Safe for installation aboard gasoline powered boats.
- Meets SAE J1171 external ignition protection requirements.
- Weather Resistant.
- Combines switching and circuit breaker function into one unit*.
- ‘Trip Free” – cannot be held closed after trip.
* Do not use for direct control of high inrush loads such as motor starting.
Interrupt Rating: 3,000A @ 30V DC
Maximum Voltage Rating: 48 Volts DC
Terminal Stud Size: M6
Mounting Holes Accept” 1/4″ (M6) screw
Additional information
| Weight | 0.5000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 in |
